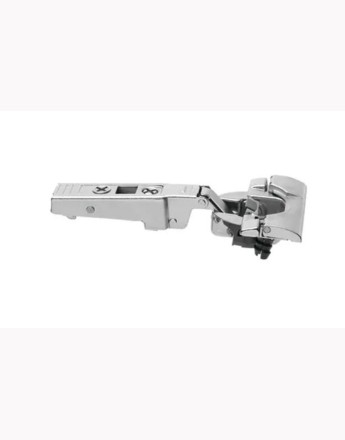

Blum 95° full overlay CLIP Top BLUMOTION thick door soft-close hinge inserta (71B9590)
£4.97(inc. VAT)
Model: 71B9590
Status: In Stock
Qty
Product Description
This hinge is designed for use with thicker doors ranging
from 25 to 32mm.
CLIP top BLUMOTION is a combination of the latest
technology, design, and, above all, excellent quality of movement on even the
smallest surfaces. The Blumotion is integrated into the hinge cup. The BLUMOTION
function can be deactivated.

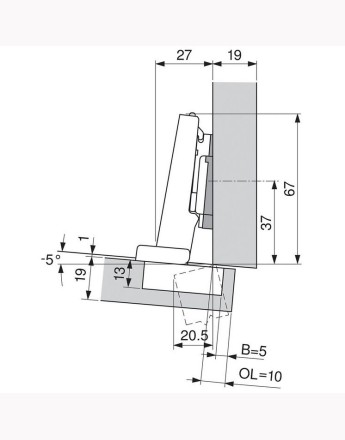

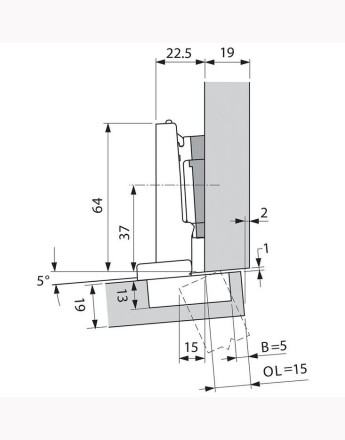

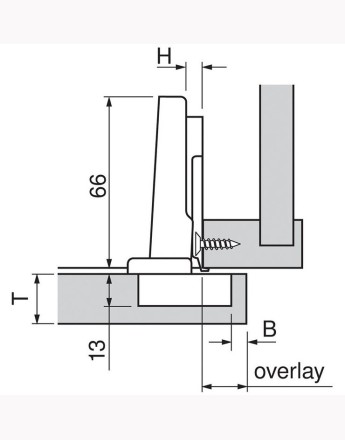

Please have a look at the Product Specification for technical
details.
Product Specification
Opening angle: 95°
Full overlay
Cranking: corner merge application
CLIP Top BLUMOTION
Hinge cup assembly: inseta
Hinge cup material: steel hinge cup
Closing mechanism: with spring

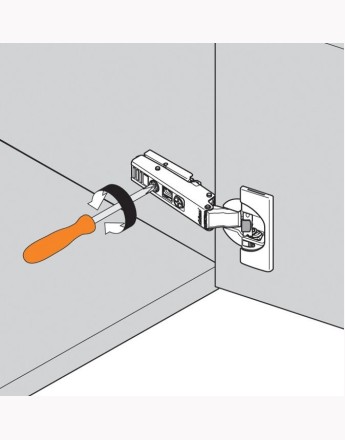

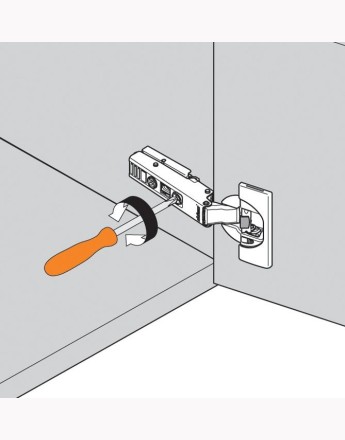

Side adjustment: +/- 2 mm

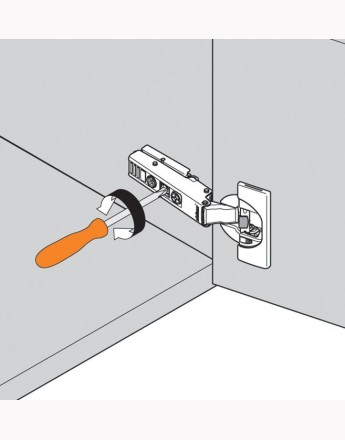

Depth adjustment: plus 3/minus 2 mm, convenient with spiral screw
Cabinet type: frameless
Closing type: soft-closing

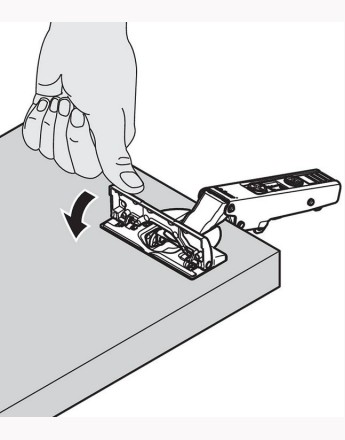

Hinge cup mounting: tool-free
Boring pattern spread: 45mm
Application: standard
Arm style: straight
Cup diameter: 35mm
Cup depth: 12.7mm
Max overlay: 18mm
Max door thickness: 30mm
Product finish: nickel
Plate sold separately
