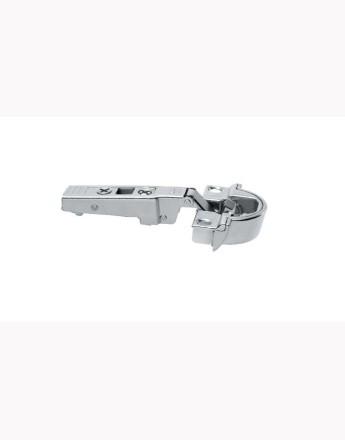

Blum 95° Full overlay CLIP top BLUMOTION narrow aluminum door soft-close hinge blum (71B950A)
£6.61(inc. VAT)
Model: 71B950A
Status: In Stock
Qty
Product Description
71B950A is dedicated to framed doors with aluminum
profiles. CLIP top BLUMOTION gives many options. CLIP top BLUMOTION is a
combination of the latest technology, design, and, above all, excellent quality
of movement on even the smallest surfaces. The Blumotion is integrated into the
hinge cup. The BLUMOTION function can be deactivated.
Please have a look at the Product Specification for technical
details.
Product Specification
Opening angle: 95°
Cranking: corner merge application
CLIP Top BLUMOTION

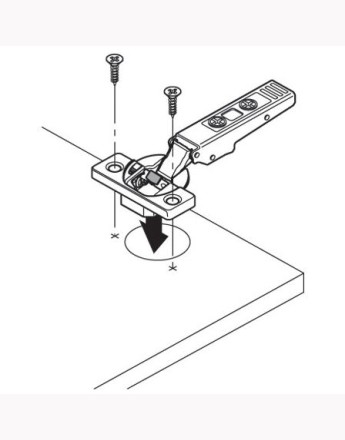

Hinge cup assembly: screw-on
Hinge cup material: steel hinge cup
Closing mechanism: with spring
Side adjustment: +/- 2 mm

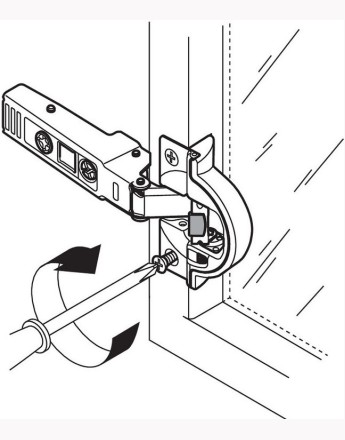

Depth adjustment: plus 3/minus 2 mm, convenient with spiral screw
Cabinet type: frameless

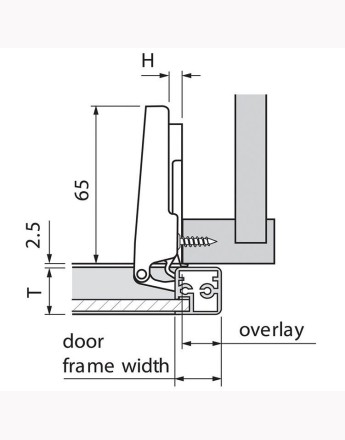

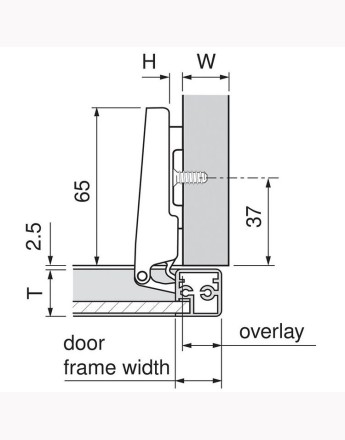

Full overlay
Closing type: soft-closing

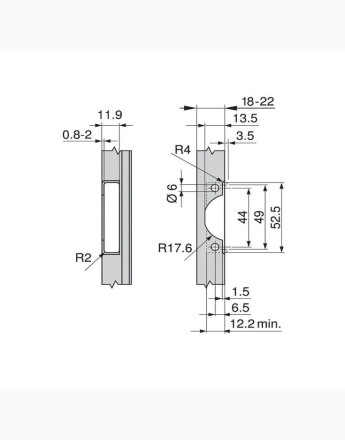

Boring pattern spread: 45mm
Application: aluminum door
Configuration: plate sold separately
Cup diameter: 35mm
Cup depth: 13mm
Max door thickness: 30mm
Product finish: nickel
Plate sold separately
