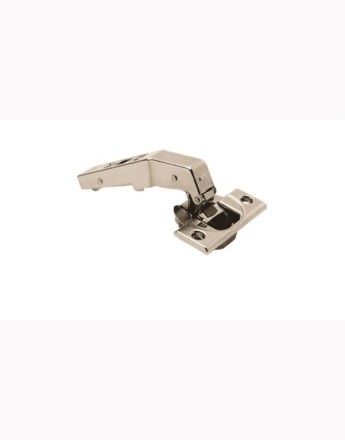

Blum 95° cliptop full overlay inset hinge, screw-on (79B9550)
£6.24(inc. VAT)
Model: 79B9550
Status: In Stock
Qty
Product Description
This hinge is available for blind corner unit doors.
CLIP top BLUMOTION is a combination of the latest technology, design, and, above all, excellent quality of movement on even the smallest surfaces. The Blumotion is integrated into the hinge cup. The BLUMOTION function can be deactivated.
Please have a look at the Product Specification for technical
details.
Product Specification
Opening angle: 95°
Inset

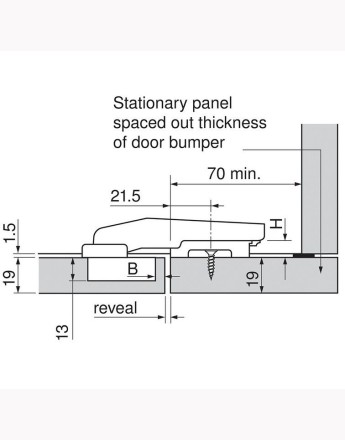

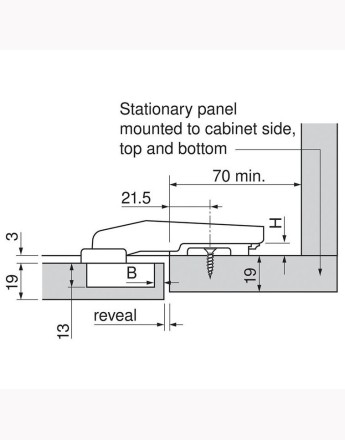

Cranking: corner merge application
CLIP Top BLUMOTION

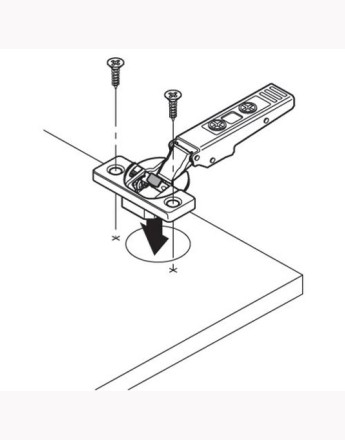

Hinge cup assembly: screw-on
Hinge cup material: steel hinge cup
Closing mechanism: with spring

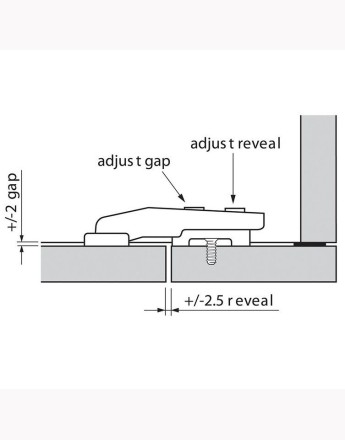

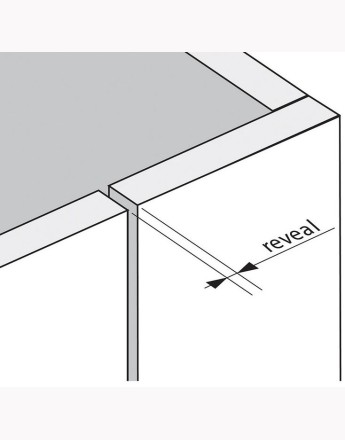

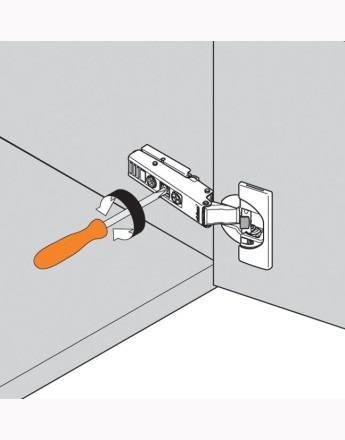

Side adjustment: +/- 2.5 mm

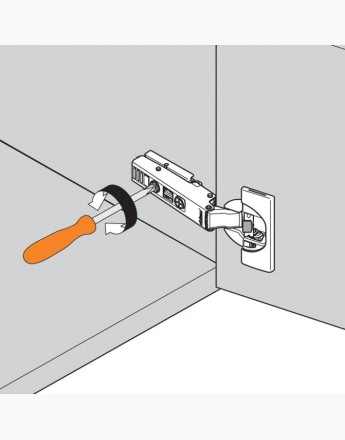

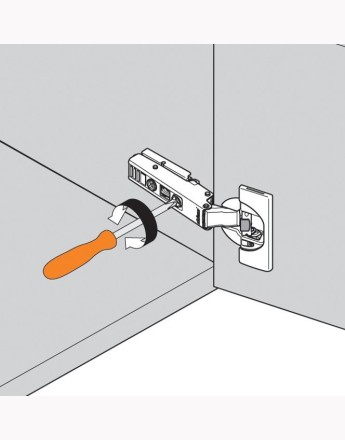

Depth adjustment: +/- 1 mm, convenient with spiral screw
Cabinet type: frameless
Closing type: soft-closing
Hinge cup mounting: screw-on
Boring pattern spread: 45mm
Application: blind corner
Arm style: straight
Cup diameter: 35mm
Cup depth: 13mm
Max overlay: up to 24mm (15/16")
Max door thickness:
Product finish: nickel
Plate sold separately
