Blum 0mm wing plate, adj height, pre-mounted 5mm system screw (173L8100)
£0.34(inc. VAT)
Model: 173L8100
Status: In Stock
Qty
Product Description

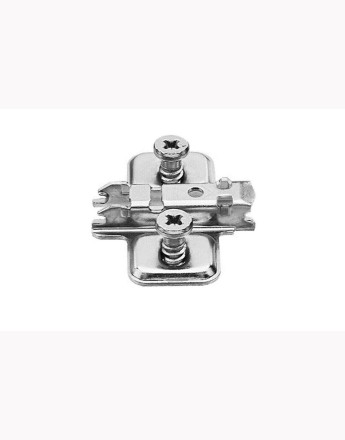

Pressed steel cruciform mounting
plates are compatible with all Blum clip-top hinges. Pre-mounted euro screws
are included for added fixing durability, with the option to use a third fixing
point for wide-angled hinges or heavy doors.
Please have a look at the Product Specification for
technical details.
Product Specification
About 173L8100
Mounting plate system: CLIP
Spacing: 0mm
Shape of mounting plate: cruciform
Material: steel
Finish: nickel plated
Fixing: for chipboard screws
Height adjustment: +/-3mm with elongated hole
Plate type: wing 1-piece

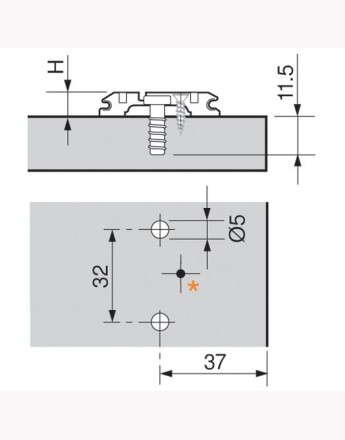

Installation:
Distance between fixing positions: 32mm
Distance cabinet front edge to first fixing position: 37mm
Mounting plates height adjustment: with elongated holex
Diameter of fixing holes: 5mm
Drilling depth of fixing holes: 11.5mm
